QI65CWE IPX4
The QI65CWE IPX4 offers premium in-ceiling audio with added moisture protection for bathrooms and kitchens. IPX4 certification guards against splashing water, while a zinc-plated grille resists corrosion. Featuring Easyfit tool-free installation, a polypropylene woofer and adjustable tweeter, it delivers clear, powerful sound with long-term reliability.
KEY FEATURES
- Easyfit spring mechanism has been engineered to significantly reduce fitting time, while improving long-term reliability.
- Speakers are optimally tuned to partner perfectly with our award-winning E50, E120 and E300A easy install audio systems.
- IPX4 certified, making them resistant to splashing water from any direction and suitable for use in bathrooms, shower rooms and kitchens.
- The tweeter can be pivoted up to 22 degrees through 360 degrees, allowing installers to direct high frequencies towards a specific listening position for optimal clarity and detail.
- A high-frequency EQ switch allows fine tuning of the sound by ±1.5 dB to suit different rooms and preferences.
- All grilles are zinc-plated before painting, helping to prevent corrosion in humid environments.
- The updated white finish on the grille delivers a cleaner, brighter look on the ceiling.
- The inward-bent metal grille creates a seamless, low-profile appearance, resulting in a speaker that virtually disappears into the room.
SPECIFICATIONS
AUDIO

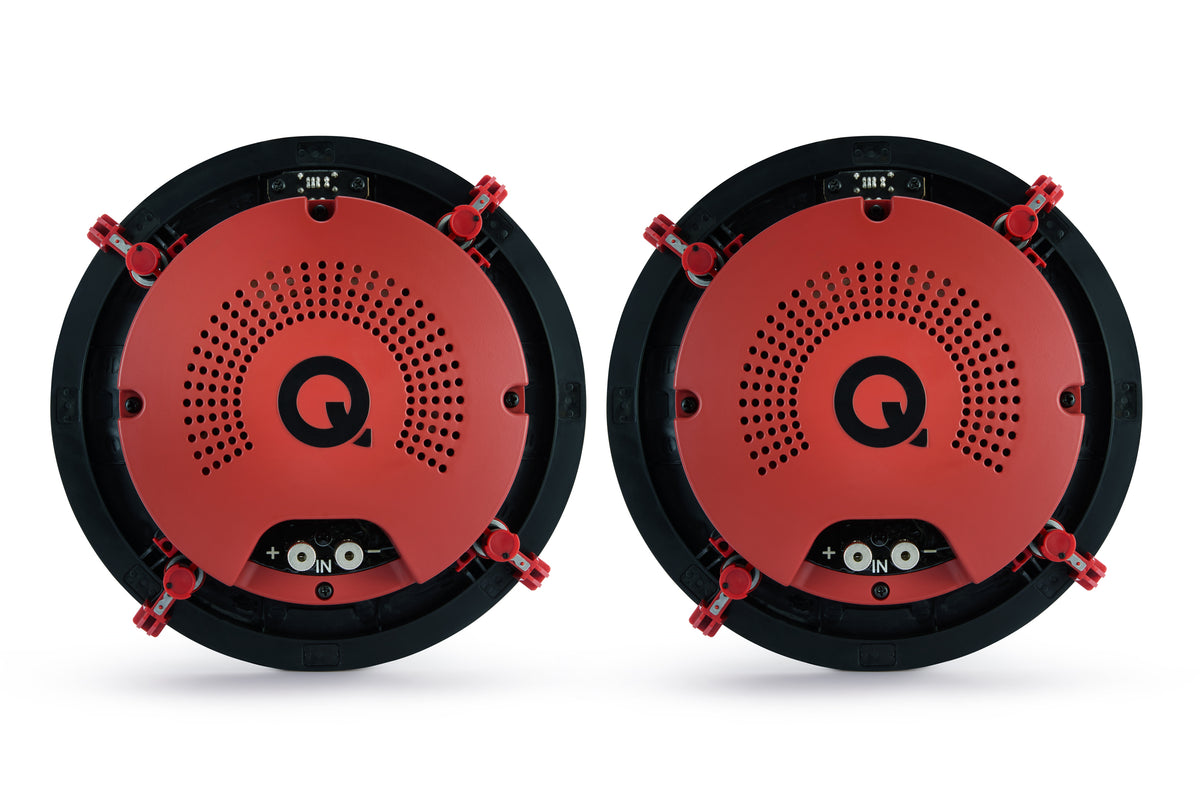

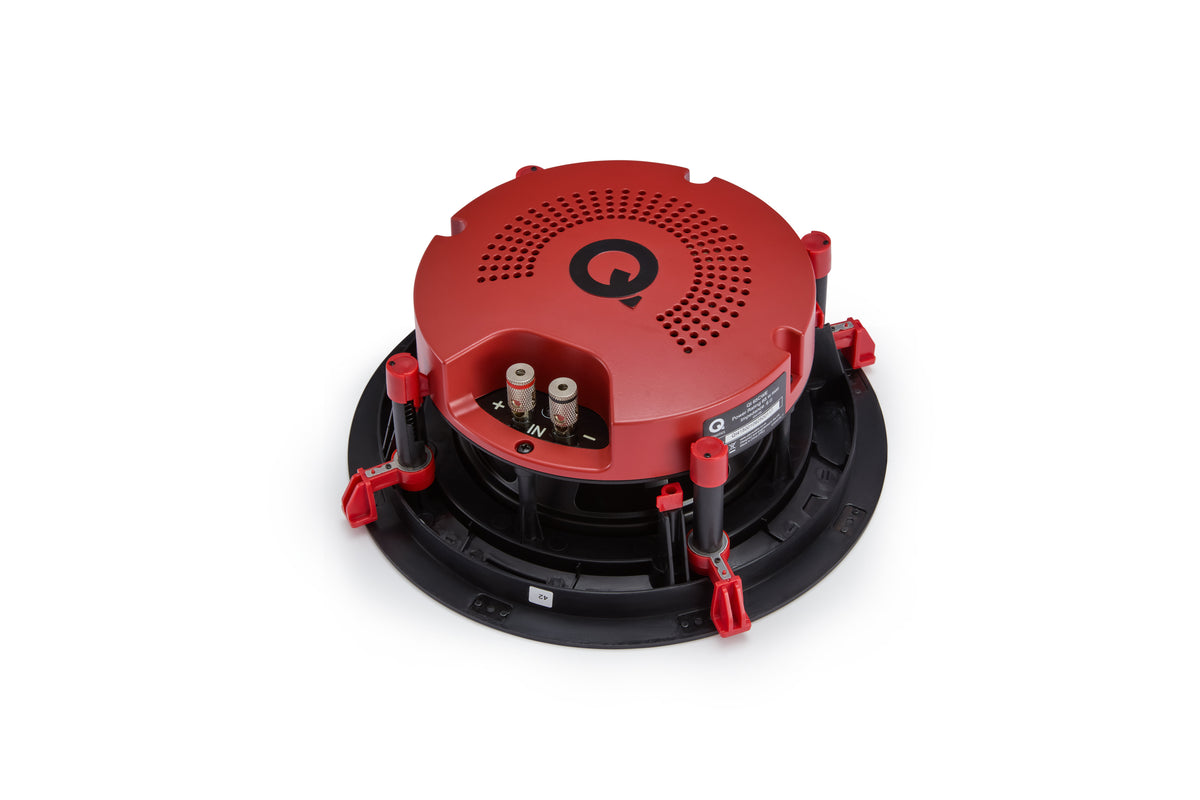

- Terminal: 2 x 4 mm spring loaded
- Power rating: 65 W RMS
- Frequency response (-6 dB): 73 Hz - 34 kHz
- Nominal impedance: 8 Ω
- Minimum impedance: 6.3 Ω
- Sensitivity (1m, 2.83 Vrms @ 1 kHz): 88 dB
- Crossover frequency: 2.9 kHz
DIMENSIONS
- Weight (per speaker): 1.85 kg
- Dimensions (HxWxD): 242 mm x 242 mm x 106 mm
SPEAKER DIMENSIONS
- Driver: 165 mm (6.5 in)
- Tweeter: 19 mm (0.75 in)
FITTING DIMENSIONS
- Cut out size: 212 mm (8.35 in)
- Maximum wall thickness: 30 mm (1.18 in)
IN THE BOX
- 1x Pair of speakers
- 1x Pair of speaker grilles
- 1x Ceiling cutout template
- 1x Installation manual
Explore the Series
Easyfit. Easy life.
Easyfit range has been developed for homeowners and installers who want premium sound with minimal disruption. The new series includes three 6.5-inch models - QI65CE, QI65CWE IPX4, QI65CWE Stereo IPX4 - all engineered to deliver room-filling sound, while blending discreetly into any living space.
Explore the SeriesFaster, smarter installation
The Easyfit spring mechanism has been engineered to significantly reduce fitting time, while improving long- term reliability. By eliminating the need for power tools and traditional screw-tightened fittings – which can often strip or break over time – Easyfit offers a robust, installer-friendly solution.
Explore the SeriesImproved discreet design

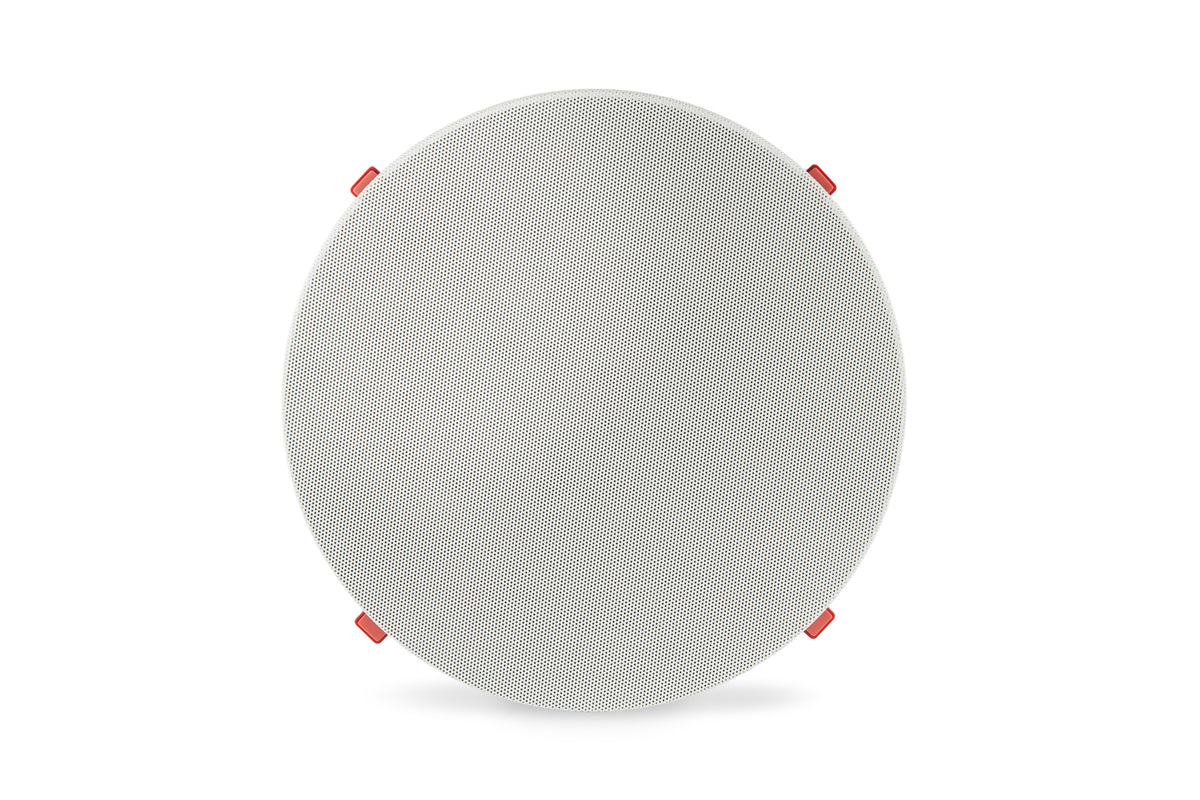

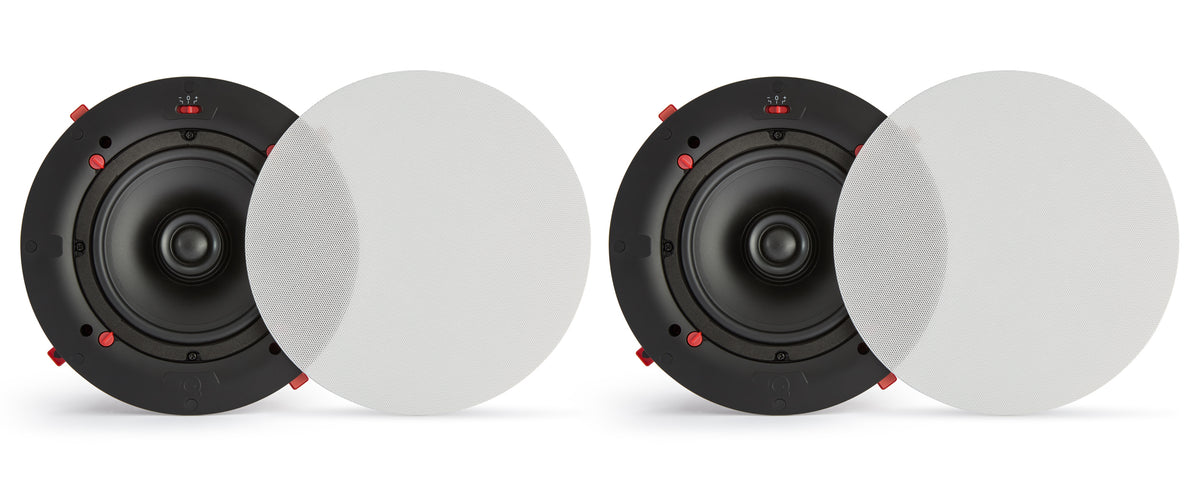

Every model in the Easyfit series benefits from a refined, minimalist aesthetic. The updated white finish delivers a cleaner, brighter look on the ceiling, while the inward-bent metal grille creates a seamless, low-profile appearance. The result is a speaker that virtually disappears into any room in the home.
Explore the SeriesHeritage sound
We have a rich heritage in designing class-leading loudspeakers, and that expertise is fully reflected in the Easyfit range. The speakers feature polypropylene mid/bass woofer cones, chosen for their excellent bass and mid-range performance, as well as their suitability for moisture-resistant applications. The Easyfit speakers are optimally tuned to partner perfectly with our award-winning E50,E120 and E300A easy install audio systems, while remaining fully compatible with any third-party installation system.
Explore the SeriesEasyfit mechanism

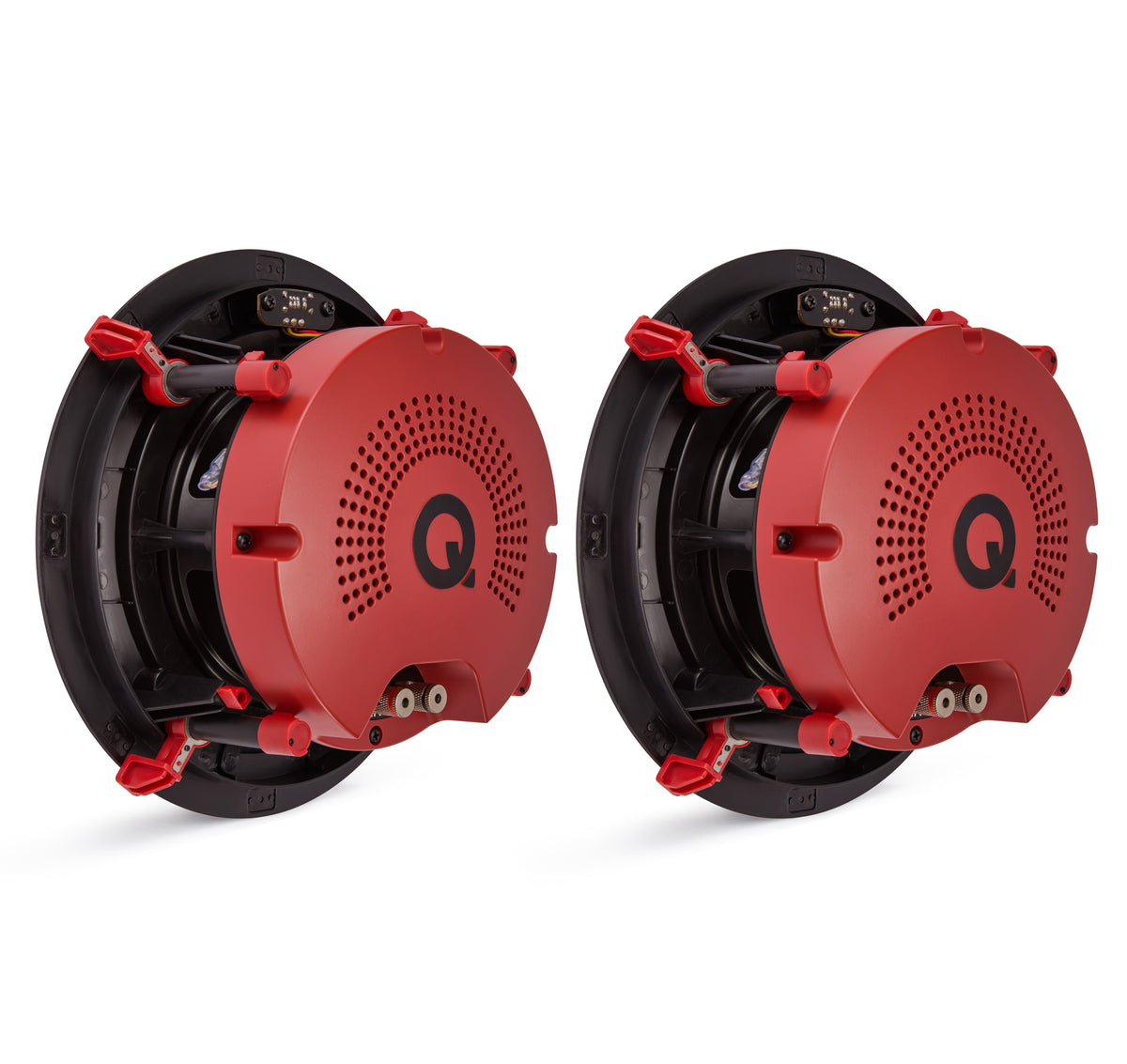

Each speaker uses four high-tension spring fixings that apply consistent pressure against the plasterboard. The fixings can be primed into a locking position and, once the speaker is wired and placed into the ceiling void, the installer simply releases each catch. The springs then deploy automatically, securing the speaker firmly in place. A screwdriver is only required for removal, using a simple push, lift and 90-degree turn to retract the mechanism. It’s quick, reliable and highly cost-effective.
IPX4 certified
QI65CWE and QI65CWE Stereo models in the Easyfit range are IPX4 certified, making them suitable and essential for use in bathrooms, shower rooms and kitchens. IPX4 protection means the speakers are resistant to splashing water from any direction. To further enhance durability, the grilles are zinc-plated before painting, helping to prevent corrosion in humid environments.
Tweeter design

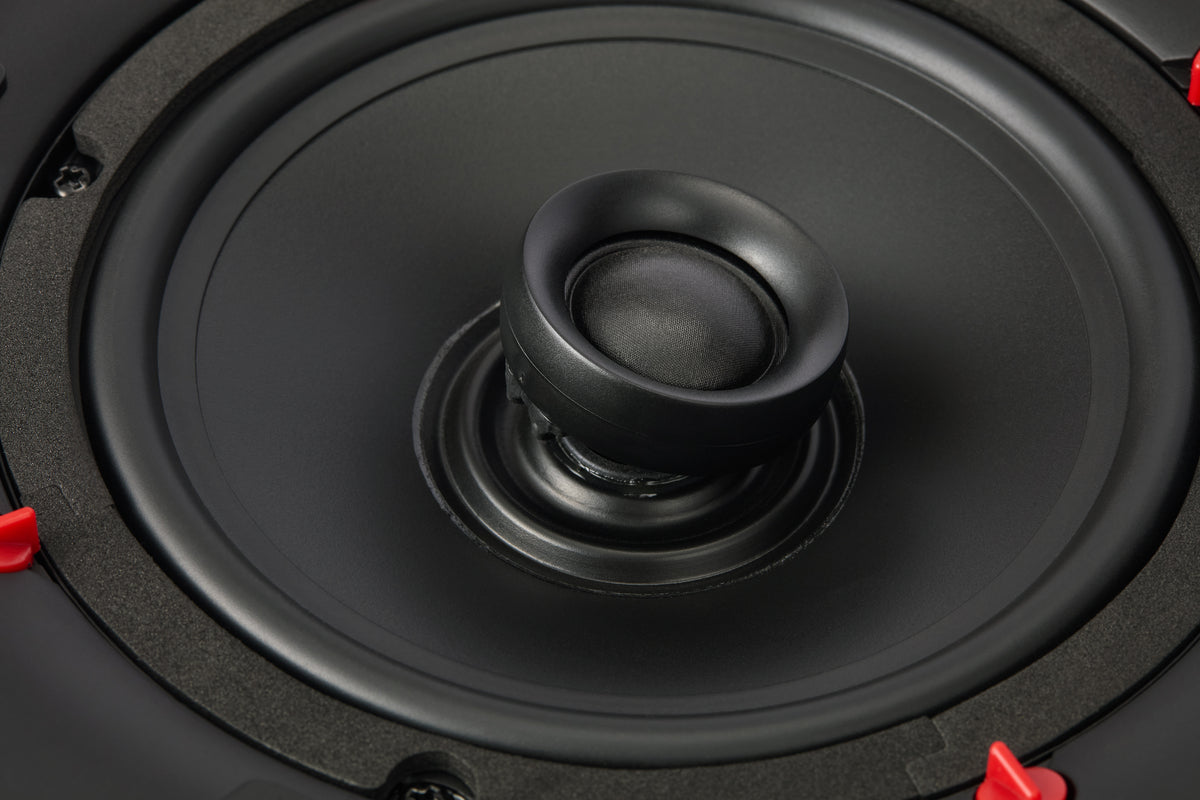

On the stereo QI65CE, QI65CWE and QI80CE models, the tweeter can be pivoted up to 22 degrees through 360 degrees, allowing installers to direct high frequencies towards a specific listening position for optimal clarity and detail. A high-frequency EQ switch also allows fine tuning of the sound by ±1.5 dB to suit different rooms and preferences.
Amps and speakers
Powered by high-quality class D stereo amplifiers, the install system range is optimised for our series of high performance in-ceiling and in-wall speakers. Furthermore, owners can connect up to four in-ceiling/in-wall speakers for larger rooms or any pair of passive speakers, including cabinet designs between 6 - 8 ohms.
